Category: GATE VALVE

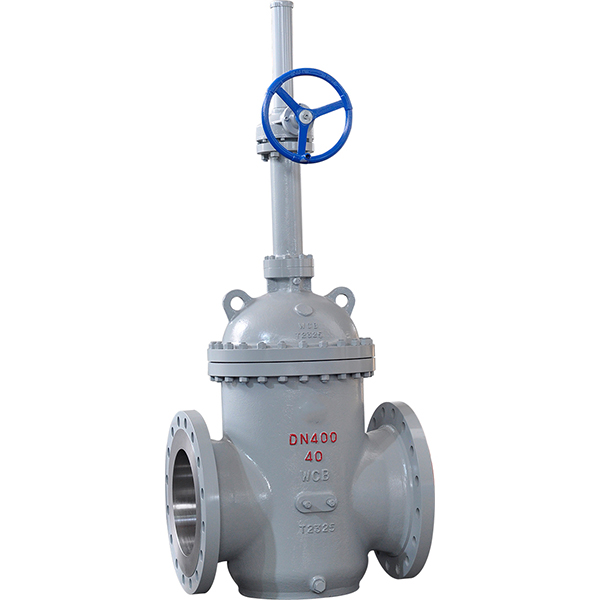

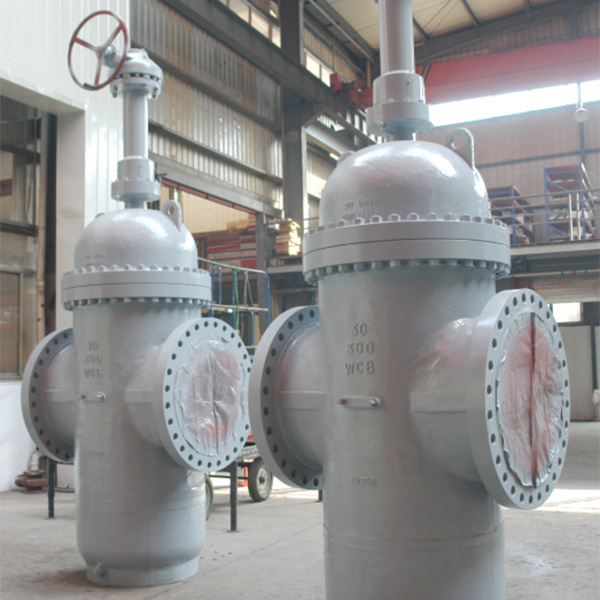

MAIN FEATURES: The two sealing faces of a slab gate valve are perpendicular to the pipeline axis, its closing member is a single disc, valve equipped with a stretching mechanism.
Standard
ASME, API, JIS, BS, DIN, GB, JB, HG
Nominal diameter
1/2"-60" DN15-DN1500
Pressure
150LB-2500LB 0.6Mpa-42.0Mpa
Material
WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
End Connection
FF,RF, RJ, BW, SW
Temperature
-196℃-650℃
Medium
Water, Oil, Gas
Packing
uitable packing for Sea/Air Transport
Payment
T/T, L/C
Operation

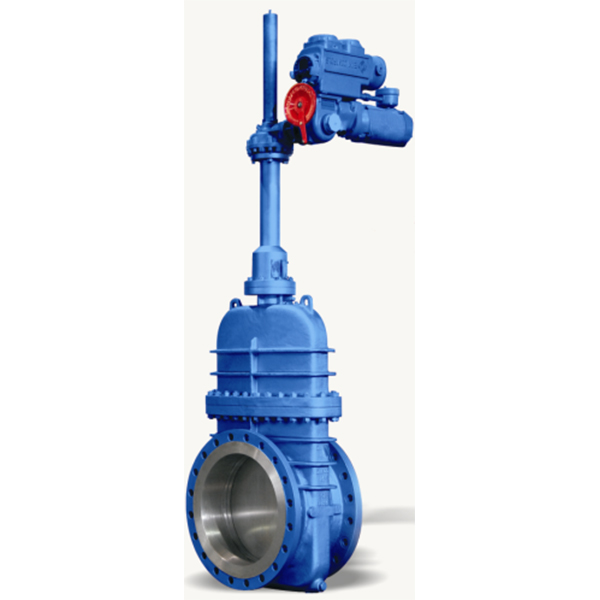

Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
